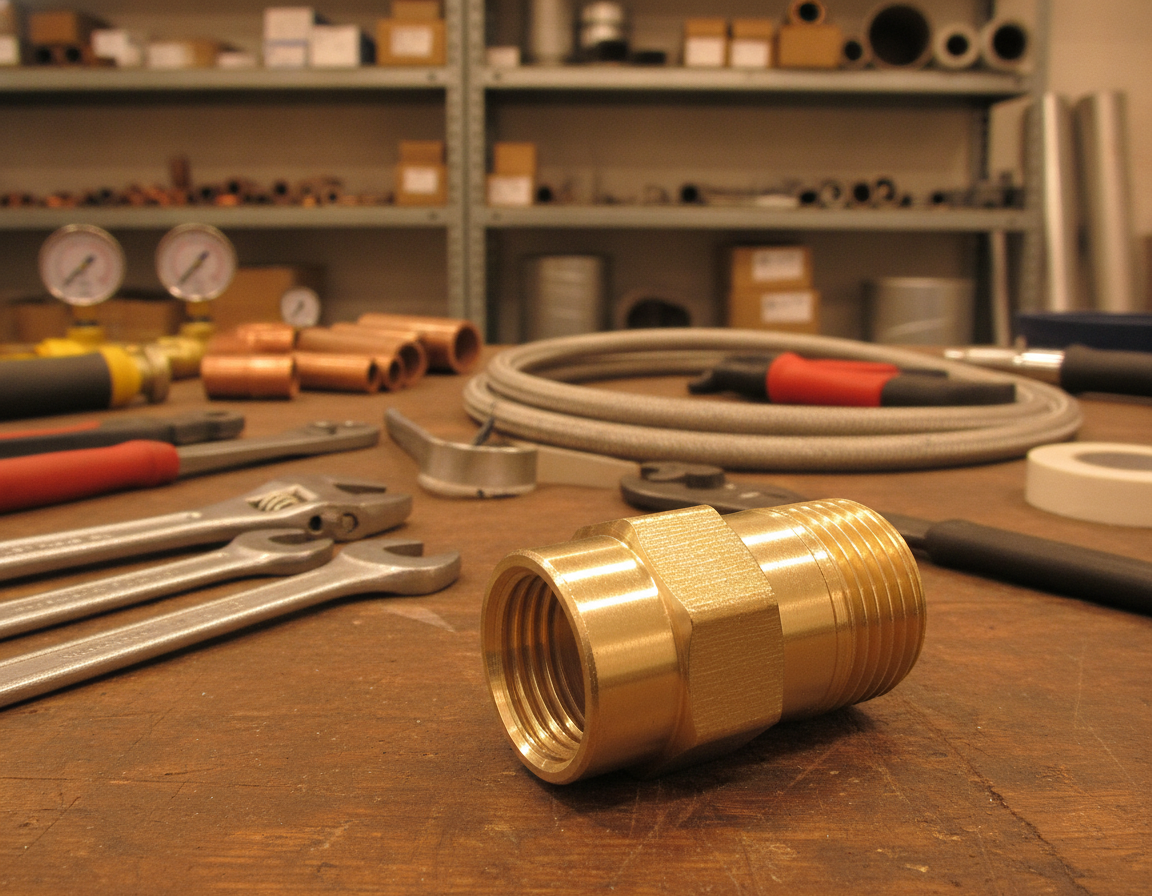

Female compression fittings provide a straightforward, reliable method for connecting pipes and tubing. They remove the need for solder or welded joints. This overview covers the basics of female compression fittings, showing how the compression nut and ferrule produce a tight seal. It also highlights their importance in both plumbing and HVAC applications.
3 8 Male Compression Fitting
Opting for high-quality pipe fittings can significantly reduce energy losses. This, in turn, prevents refrigerant or water leaks, which can harm the environment. HVAC systems, which include components like compressors, condensers, expansion valves, and evaporators, depend on robust connections. Selecting the appropriate female compression fitting and compatible materials—such as brass, copper, stainless steel, PVC, or PEX—is critical for long-term system performance.
In many plumbing systems, PEX or PVC with compression fittings are favored for their ease of service and low heat exposure. For different demands, refrigeration lines require fittings that can resist thermal fatigue and preserve a seal across a wide temperature range. InstallationPartsSupply.com and its product lines cater to these needs, stocking common sizes and parts such as ferrules and compression nuts.
Quick Summary
- A Female Compression Fitting uses a compression-nut and ferrule assembly to seal without soldering.
- Selecting the right material—brass, copper, stainless, PVC, or PEX—reduces the risk of corrosion and failure.
- Proper fittings reduce energy loss and help stop refrigerant or water leaks in HVAC and plumbing systems.
- Fitting guide materials and suppliers like InstallationPartsSupply.com simplify part selection.
- Examine ferrules and tighten per manufacturer torque to ensure a long-lasting seal.
Understanding HVAC And Plumbing Uses For Compression Fittings
Compression fittings join pipes and tubing without solder or welding. They are commonly used on copper, PEX, PVC, and stainless lines where heat or flame is undesirable. Many contractors obtain parts from Installation Parts Supply to support consistent quality and fit.
What A Compression Fitting Is And How It Works
A compression fitting works with a nut and a ferrule olive pressed against the pipe by the fitting body. When the nut is tightened, it compresses the brass ferrule or sleeve, which grips the outer pipe and forms a seal. This mechanical action demonstrates the common question of what is a compression fitting by showing how mechanical compression creates a leak-tight joint.
How HVAC Fittings Differ From Plumbing Fittings
HVAC fittings need to manage refrigerants, wider temperature swings, and thermal fatigue. Plumbing fittings usually handle potable water, wastewater, and pressure from building systems. For HVAC and plumbing fitting selection, selection depends on media, service temperature, and pressure ratings.
HVAC systems like split systems, VRF, and rooftop units often use copper fittings and brazed joints for refrigerant lines. Plumbing applications often favor PEX compression and PVC for drains, where solvent welds or crimp systems are common.
Common Materials Used In Compression Fittings
Copper fittings provide excellent thermal conductivity and corrosion resistance. Brass fittings and ferrules withstand wear and are common in many compression fittings. Stainless steel works well in corrosive or high-pressure environments.
PEX compression works well in domestic water lines because it withstands freeze-thaw cycles and is flexible. PVC remains a low-cost option for drains and certain chilled-water circuits when pressure is low.
| Material Type | Usual Application | Key Strengths | Limitations |
|---|---|---|---|
| Copper Components | Refrigerant lines, potable water | Strong conductivity with durable performance | More expensive and vulnerable to mechanical damage |
| Brass Material | Compression nuts, fitting bodies, and ferrules | Good machinability, corrosion resistance | May react with incompatible metals |
| Stainless steel | Demanding corrosive applications | Extremely durable and corrosion-resistant | Costlier with tougher fabrication |
| PEX Tubing | Home hot-water and cold-water lines | Freeze-resistant with flexible handling | Needs compatible PEX compression hardware |
| PVC Pipe | Drains and low-pressure chilled water | Affordable and easy to work with | Unsuitable for high heat or high pressure |
How Correct Fitting Selection Improves Efficiency And Leak Prevention
Selecting the proper fitting lowers leak risk and maintains system pressure. In refrigeration circuits, a poor joint can release refrigerant and lower efficiency. Tight seals and matched materials cut maintenance and lower energy waste.
Using correct ferrule olive type and matching copper fittings or PEX compression hardware limits the risk of galvanic corrosion and thermal fatigue. This approach supports service life and keeps HVAC and plumbing systems running efficiently.
Understanding Female Compression Fittings
A female compression fitting seals a pipe or tube end when a nut compresses the ferrule olive against the fitting body. This connection provides tight connections without soldering, making it common in plumbing and HVAC. Related unions and adapters make possible quick disassembly for service or instrument changes.
Common Configurations And Definition
A usual compression assembly includes a female compression nut, a ferrule olive, and the fitting body. The compression nut fastens to the fitting body and compresses the ferrule to grip the tube. Many installations rely on unions, straight fittings, or elbow bodies to adapt direction and access during maintenance.
Materials And Compatibility
Brass and copper are typical choices for refrigerant fittings and hot-water lines due to their ability to tolerate thermal cycles and resist deformation. Stainless steel is chosen for high-pressure or corrosive environments. PEX and PVC are often used in condensate and domestic water runs, but they require proper inserts or specific ferrules for secure joints.
Common Uses In Plumbing, HVAC Refrigerant Lines, And Instrumentation
In plumbing, female compression fittings link stops, valves, and supply lines without solder. In HVAC, technicians use them on refrigerant fittings between compressor, condenser, and evaporator where service access is critical. Instrumentation systems and gas lines commonly need compression parts for leak-tight, serviceable connections.
Female Vs Male Compression Fittings And Adapters
Female fittings accept a male end and form the receiving thread, while a 3 8 Male Compression Fitting provides that mating male component for tubing or ports. A 3/8 Valve Adapter lets technicians interface service valves and gauges to the system. Choosing matched materials prevents galvanic corrosion and keeps joints reliable under pressure and thermal change.
| Assembly Part | Usual Material | Typical Use | Maintenance Note |
|---|---|---|---|
| Female compression nut | Machined brass | Plumbing feeds and shutoff connections | Change it if cracked or stripped |
| Compression ferrule | Brass or stainless steel | Seals around copper, brass, or compatible PEX | Often not reusable after compression |
| Compression fitting body | Brass, stainless steel | Refrigerant service and instrumentation | Match to refrigerant type and pressure rating |
| 3 8 male compression adapter | Copper and brass | Connecting small tubing to female ports | Check thread and seat compatibility |
| 3/8 service valve adapter | Brass | Gauge and manifold connections | Use with proper seals for refrigerant fittings |
| Installation Parts Supply inventory | Several material options | Source for matched kits and replacements | Choose compatible ferrules and nuts for longer service life |
Types, Sizes, And Related Adapters For Plumbing And HVAC Projects
This overview covers the various fitting types, sizes, and adapters essential for plumbing and HVAC projects. Contractors select couplings, elbows, unions, and adapters to manage line routing, component isolation, and service access. The selection of these components significantly impacts system performance, including pressure rating, temperature limits, and reliability.
Compression couplings plus compression unions help create the creation of removable joints for maintenance and testing. Couplings are best suited to straight connections, while compression unions are more suitable for components that need to be disconnected without disrupting the line. For short runs, a 3/8 Compression Coupling is often used in instrumentation and refrigeration applications.
Elbows and adapters are necessary for tubing routing around obstacles and for connecting different types of fittings. A 3 8 Male Compression Fitting is used to connect to a female port or adapter, facilitating the integration of service valves and gauges. Installation Parts Supply catalogs provide a wide range of these components, helping provide quick access on job sites.
Picking the correct fitting size matters, depending on the tube’s outside diameter and the ferrule and nut set. Confirm that the female compression fitting size matches the tube OD to prevent leaks. For 3/8-inch applications, verify ferrule compatibility and torque specifications. It’s also important to check the system’s maximum pressure and temperature ratings before making a final selection.
Specialized parts like the Max Adaptor and 3/8 Valve Adapter are designed for connecting gauges, service ports, and small refrigerant lines. These adapters simplify the process of charging and diagnostics in HVAC systems. In HVAC, a 3/8 Valve Adapter is commonly used to link manifold hoses to service valves on compact systems.
Choosing material involves a trade-off between durability and corrosion resistance. Stainless steel is durable and resistant to corrosion, making it suitable for harsh environments. Brass and copper are commonly selected for refrigerant circuits and heat transfer lines due to their balance of machinability and corrosion protection. PVC and PEX are appropriate for low-pressure condensate and water lines but not for high-pressure refrigerant service.
The environmental effect of fittings depends on leak prevention and recyclability. Properly fitted metal fittings reduce refrigerant emissions and can be recycled at the end of their life. Choosing quality parts from dependable suppliers reduces failures and minimizes long-term environmental risk.
Use the comparison below to select between common options by application, pressure, temperature, and reusability.
| Fitting Style | Typical Use | Approximate Max Pressure | Typical Temperature Range | Service Reuse |
|---|---|---|---|---|
| Compression coupling in brass | Instrument lines, small water lines, and refrigeration uses | Up to 3,000 psi depending on specification | Approximately -65°F to 250°F | Reusable only in some cases if undamaged |
| Brass or stainless compression union | Removable service connections | As high as 2,500 psi | Approximately -65°F to 300°F | High; designed for disconnects |
| 3/8-inch compression coupling | Instrumentation, refrigerant lines, and small plumbing runs | Depends on system; confirm pressure rating | Confirm material temperature rating | Moderate reuse depending on ferrule condition |
| 3 8 male compression connector | Interface for valves, gauges, and small lines | Rated for refrigerant service when brass/stainless | Suitable for typical HVAC cycles | Can be reused if threads and seat remain sound |
| Max Adaptor brass/stainless | Specialized coupling for gauge and valve interfaces | High rating for suitable service tools | Meets HVAC temperature cycles | Reusable; built for repeated service |
| Plastic water fittings | Low-pressure water and condensate lines | Low; not for refrigerant | 32°F to 140°F typical | Limited reuse depending on system and UV exposure |
Before buying, check Installation Parts Supply or other reputable distributors for part numbers, material options, and pressure ratings. Confirm that the chosen 3/8 Valve Adapter or Max Adaptor matches both the tubing OD and the service fitting type to avoid mismatches on site.
Best Practices For Installation And Maintenance
Correct compression fitting installation begins with clean, square pipe ends and the right parts. When working with HVAC refrigerant lines, use copper and brass. For condensate or chilled water, PVC or PEX is best. Always refer to manufacturer specs and ASME B31.5 to minimize energy loss and leaks.
Installing compression fittings correctly
1. Cut and deburr the tube to a square face. 2. Slide the nut and ferrule onto the pipe in that order. 3. With softer plastic tubing, insert pipe inserts to keep the tube round before assembly. 4. Tighten by hand first the nut, then use the two-wrench technique to finish the joint.
Tools and techniques
Use a two-wrench method to hold the fitting body and turn the nut to prevent tube twist. Follow torque guidance from the fitting maker or Installation Parts Supply when available. Typical practice is to snug by hand, then add a limited number of wrench turns.
Using pipe inserts correctly
Pipe inserts should be used with soft plastic tubing like PEX or thin-wall PVC to prevent ovalization and ensure a leak-free seal. Skip inserts for solid copper or thick-walled metal tubing, where inserts can interfere with proper ferrule compression.
Mistakes to avoid and ferrule removal tips
Avoid tightening too little or too much. Loose fittings leak; over-tightening deforms the ferrule and can make ferrule removal difficult. Most ferrules should be treated as single-use parts; plan to replace them when disassembling a joint.
How to remove a ferrule
Before removal, shut off supply and relieve pressure. Grip the fitting body with one wrench while loosening the nut with a second. Remove the nut and slide out the ferrule. If the ferrule will not move, apply penetrating oil, use a ferrule puller, or carefully cut the ferrule off without nicking the pipe.
Installing a 3/8 Valve Adapter
For small lines like a 3/8″ valve connection, prepare the tubing the same way and follow the two-wrench technique. The 3/8 Valve Adapter process mirror larger fittings but require careful attention to torque guidance to avoid crushing the tube or the adapter threads.
Maintenance and inspection guidance
Once the system is pressurized, inspect joints for weeps and tighten slightly if needed. Make regular checks for corrosion and thermal fatigue, specially on refrigerant circuits. Avoid installing compression connections where vibration will loosen them over time.
| Step | Task | Helpful Tip |
|---|---|---|
| Prep Work | Cut the tube square, deburr, and clean it | Use a good tubing cutter and deburring tool |
| Fit-Up | Slide on the nut and ferrule, then insert into the fitting | Install pipe inserts in soft plastic tubing |
| Final Tightening | Hand-tighten, then use two wrenches | Follow manufacturer torque guidance |
| Leak Test | Pressurize the system and look for weeps | Inspect carefully and adjust only when safe |
| Ongoing Service | Inspect regularly, replace ferrules when disassembled | Have spare ferrules and nuts available from Installation Parts Supply |
Final Thoughts
Selecting the proper compression fitting is essential for plumbing and HVAC work. The fitting material, whether brass, copper, stainless steel, PVC, or PEX, must align with the service type. This helps provide reliability and extends system life. Proper parts and installation can significantly reduce energy losses and refrigerant leaks, preserving performance and environmental health.
Compression fittings offer a leak-free, solder-free solution. They are made up of a nut, ferrule, and body. For a dependable seal, follow these steps: square-cut and deburr the tubing, use the two-wrench technique, and replace ferrules when reused. These methods guarantee long-lasting, leak-tight connections in various applications, from copper piping to instrumentation.
For particular installations, such as 3/8″ lines, 3/8 Compression Coupling, or 3/8 valve adapters, it is important to match size and pressure ratings to the task. Trusted-supplier parts are essential. An Installation Parts Supply guide can assist in finding compatible fittings and adapters. Ongoing checks and good part selection support system efficiency and compliance.
In summary, dedicating time to material selection and correct assembly is worthwhile. That helps ensure durable, leak-free connections. It contributes to optimal performance, fewer repairs, and less environmental harm.
